Simplex / Duplex Fiber Optic Connector Adapters

Name: Simplex Duplex Fiber Optic Connector Adapters
Brand: Geehe or OEM
Price: 1 USD

Quality Simplex / Duplex Fiber Optic Connector Adapters wholesale

Brand Name : Geehe or OEM

Model Number : Adapter SC/APC Single mode

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 100 PCS

Price : Price Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1,000pcs per day

Delivery Time : 5－7 days

Packaging Details : plastic zip bag and carton

Material : Plastic and Metal

Mode : Simplex/Duplex

Connector Type : LC/SC/MU

End Face : UPC

Shutter Type : With Shutter

Flange Type : No Flange

Color : Blue/Green/Beige

Contact Now

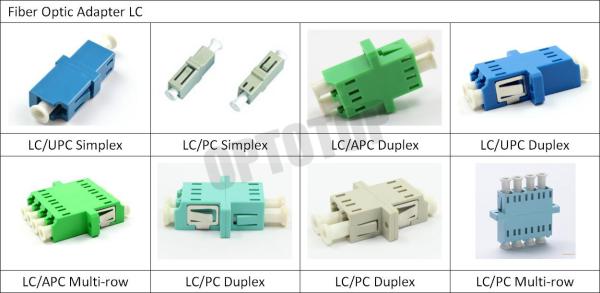

Simplex/Duplex LC/SC/MU Connector Optical Fiber Adapter Blue/Green/Beige Color

Description
Optical Fiber Adaptors (Converters, Plug) are used to connect same or different type of optical fiber connectors.

Applications Features
Optical Network Wiring Low Excess Loss
Test Equipment
Simplex / Duplex Fiber Optic Connector Adapters
Specification

parameter	SC, FC, ST, LC, MU, ST
End-face	APC/UPC/PC
Mode	Single mode & multi mode
Sleeve	Zirconia ceramic, phosphor bronze
Insertion loss (dB)	≤0.2
Exchangeability (dB)	≤0.2 (connect randomly)
Tensile strength (dB)	≤0.2 (0~100N)
Vibration (dB)	≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB)	≤0.2(-40~80℃, 21 cycles)

Ordering Information:
EX: OFA-D-FC-APC-Z-N-N

OFA

-X

-XX

-X

S: simplex

D: duplex

APC

UPC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter

Fiber mode

Connector Type

Sleeve

Flange type

Shutter type

Parameter	Unit	Value
Connector	/	FC ST SC LC
Sleeve	/	Zirconia
Insertion Loss	dB	≤0.20(Plug≤0.30)
Repeatability	Time	＞1000

Product Tags:

optical cable adapter

fiber optic cable adapter
